Dio41

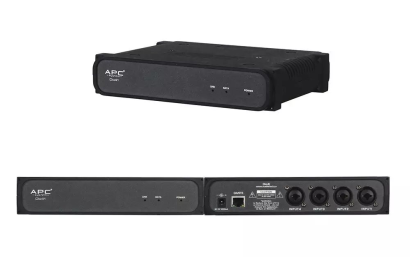

summary Dio41 is a Dante interface with 4 inputs, making it an ideal choice for adding microphone/line inputs to Dante systems. The Dio41 is compact and can be installed almost anywhere. It can be installed near the sound source to minimize analog wiring that is prone to interference. Dio41 has 4 balanced microphone/line inputs. The indicator lights on the front panel display the working status of the DANTE network for troubleshooting purposes. Dio41 has a network interface and does not support Dante daisy chain connections. Dante connectivity simplifies the infrastructure cabling of the system, with multiple Dio41 units each connected to a network switch using a Category 5 network cable. Dio41 can be powered by an external+12V DC power supply. All adjustable parameters of Dio41 can be controlled using Dante controller software. Specification parameters Network interface: 1 * RJ45 Microphone/Line Input Type: Balanced XLR/6.35 Input Compatible Input impedance:>1800 ohms, gain set to any value Equivalent input noise: -115dBu (+45dB gain) Maximum input level: without 12dB fixed attenuation,+8dBu @ 0dB gain, -7dBu @+15dB gain, -22dBu @+30dB gain Gain, and -37dBu @+45dB gain. When there is a fixed attenuation of 12dB, the maximum input level is 12dB higher Total harmonic distortion of the system:<0.01%, the gain is any value, and the input signal is 3dB smaller than the maximum value Frequency response: 20Hz-20kHz,+/-1dB Dimensions: 219.8mm wide x 44mm high x 178.3mm deep Operating temperature: 0 ℃ -40 ℃...
